Per Cavi Armati

Per Cavi Armati

Descrizione

Dati Tecnici

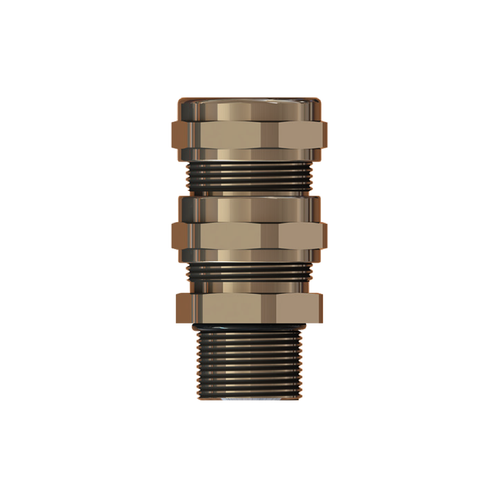

I pressacavi per cavi armati garantiscono tenuta meccanica ed elettrica in ambienti gravosi. Progettati per vincolare e proteggere l’armatura metallica, prevengono sollecitazioni, trazioni e vibrazioni. Le versioni antideflagranti, conformi alle normative ATEX, evitano propagazioni di scintille in atmosfere esplosive. Realizzati in ottone nichelato o acciaio inox, assicurano resistenza a corrosione, temperature estreme e agenti chimici.

Brand

Esecuzione: Ex d / Ex e / Ex ia IIC Gb, Ex tb IIIC Db IP66
Grado di protezione: IP66 / IP68 (5 bar, 30 min)
Normative ATEX: EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-31
Normative IECEx: IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31
Temperatura ambiente: -60°C / +180°C (in base alla guarnizione)
Zona di installazione: Zona 1 – 2 (Gas), Zona 21 – 22 (Polveri)
Materiale: Ottone nichelato, acciaio inox 316L, poliammide

Disponibile in 78 versioni
a partire da €0,00
Disponibile in 2-4 settimane
Visualizza versioni

Richiedi un preventivo

Cod. Art cable-glands-h-min cable-glands-sw2 cable-glands-sw3 torque-of-cable-glands-sw3 torque-of-cable-glands-sw2 cable-glands-sw1 clamping-range-d-min-max size-td-npt-ansi-b1.20.b1 cable-glands-d2-min clamping-range-d1-min-max cable-glands-tl-min Unità Diametro di Serraggio 1 MIN-MAX Diametro di Serraggio 2 MIN-MAX Materiale Dimensione filettatura NPT Dati tecnici Quantità Prezzo/Unità
PAPU01NXS cable-glands-h-min 50 cable-glands-sw2 29 cable-glands-sw3 29 torque-of-cable-glands-sw3 28 torque-of-cable-glands-sw2 49 cable-glands-sw1 25 clamping-range-d-min-max 6,0-12,0 size-td-npt-ansi-b1.20.b1 3/8” cable-glands-d2-min 31,5 clamping-range-d1-min-max 8,5-16,0 cable-glands-tl-min 16 Unità 1 pezzo Dimensione filettatura NPT 3/8” Diametro di Serraggio 1 MIN-MAX 6,0-12,0 Diametro di Serraggio 2 MIN-MAX 8,5-16,0 Materiale Inox –
€0,00
PAPU01NBNS cable-glands-h-min 50 cable-glands-sw2 29 cable-glands-sw3 29 torque-of-cable-glands-sw3 28 torque-of-cable-glands-sw2 49 cable-glands-sw1 25 clamping-range-d-min-max 6,0-12,0 size-td-npt-ansi-b1.20.b1 3/8” cable-glands-d2-min 31,5 clamping-range-d1-min-max 8,5-16,0 cable-glands-tl-min 16 Unità 1 pezzo Diametro di Serraggio 1 MIN-MAX 6,0-12,0 Diametro di Serraggio 2 MIN-MAX 8,5-16,0 Materiale Ottone Dimensione filettatura NPT 3/8” –
€0,00
PAPR6MXS spanner-width-sw-upper-body 75 spanner-width-sw-lower-body 75 outer-thread-length-tl 20 outer-o-d 83 needed-barrier=compound-mixture-per-pcs 193 over-conductors-max-o 46 armour-wire-max-o 2,5 max-height 120 clamping-range-o-min-max 42,0 - 56,0 size-td-iso-pitch-1.5 M63X1,5 Unità 1 pezzo Diametro di Serraggio 1 MIN-MAX 42,0 - 56,0 Materiale Inox –
€0,00
PAPR5NBNS spanner-width-sw-upper-body 50 over-conductors-max-o 29 outer-thread-length-tl 28 max-height 82,5 outer-o-d 61 clamping-range-o-min-max 29,0 - 40,0 spanner-width-sw-lower-body 55 size-td-iso-pitch-1.5 NPT 1 1/2” armour-wire-max-o 2 Unità 1 pezzo Diametro di Serraggio 1 MIN-MAX 29,0 - 40,0 Materiale Ottone –
€0,00
PAPR5MXS outer-o-d 64 needed-barrier=compound-mixture-per-pcs 90 over-conductors-max-o 37 armour-wire-max-o 2,5 spanner-width-sw-lower-body 58 outer-thread-length-tl 16 max-height 90,5 spanner-width-sw-upper-body 58 clamping-range-o-min-max 35,0 - 48,0 size-td-iso-pitch-1.5 M50X1,5 Unità 1 pezzo Materiale Inox Diametro di Serraggio 1 MIN-MAX 35,0 - 48,0 –
€0,00
PAPR4NBNS spanner-width-sw-upper-body 50 spanner-width-sw-lower-body 50 over-conductors-max-o 29 outer-thread-length-tl 28 max-height 82,5 outer-o-d 55,5 clamping-range-o-min-max 29,0 - 40,0 size-td-iso-pitch-1.5 NPT 1 1/4” armour-wire-max-o 2 Unità 1 pezzo Diametro di Serraggio 1 MIN-MAX 29,0 - 40,0 Materiale Ottone –
€0,00
PAPR4MXS spanner-width-sw-upper-body 50 spanner-width-sw-lower-body 50 over-conductors-max-o 29 needed-barrier=compound-mixture-per-pcs 60 outer-o-d 55,5 armour-wire-max-o 2 outer-thread-length-tl 16 max-height 82,5 clamping-range-o-min-max 29,0 - 40,0 size-td-iso-pitch-1.5 M40X1,5 Unità 1 pezzo Materiale Inox Diametro di Serraggio 1 MIN-MAX 29,0 - 40,0 –
€0,00
PAPR3LNBNS spanner-width-sw-upper-body 43 max-height 74,5 outer-o-d 47,5 clamping-range-o-min-max 23,0 - 33,0 spanner-width-sw-lower-body 43 outer-thread-length-tl 26 size-td-iso-pitch-1.5 NPT 1” armour-wire-max-o 1,6 over-conductors-max-o 21,5 Unità 1 pezzo Materiale Ottone Diametro di Serraggio 1 MIN-MAX 23,0 - 33,0 –
€0,00
PAPR3LMXS outer-o-d 47,5 needed-barrier=compound-mixture-per-pcs 31 over-conductors-max-o 21,5 armour-wire-max-o 1,6 spanner-width-sw-lower-body 43 outer-thread-length-tl 16 max-height 74,5 spanner-width-sw-upper-body 43 clamping-range-o-min-max 23,0 - 33,0 size-td-iso-pitch-1.5 M32X1,5 Unità 1 pezzo Materiale Inox Diametro di Serraggio 1 MIN-MAX 23,0 - 33,0 –
€0,00
PAPR2MXS outer-o-d 33 needed-barrier=compound-mixture-per-pcs 9 over-conductors-max-o 12 armour-wire-max-o 1,3 spanner-width-sw-lower-body 30 outer-thread-length-tl 16 max-height 65 spanner-width-sw-upper-body 30 clamping-range-o-min-max 13,5 - 21,0 size-td-iso-pitch-1.5 M25X1,5 Unità 1 pezzo Diametro di Serraggio 1 MIN-MAX 13,5 - 21,0 Materiale Inox –
€0,00
PAPR2LNBNS spanner-width-sw-upper-body 40 max-height 72,5 outer-o-d 44,5 spanner-width-sw-lower-body 40 clamping-range-o-min-max 18,0 - 27,0 outer-thread-length-tl 21 size-td-iso-pitch-1.5 NPT 3/4” armour-wire-max-o 1,6 over-conductors-max-o 15 Unità 1 pezzo Diametro di Serraggio 1 MIN-MAX 18,0 - 27,0 Materiale Ottone –
€0,00
PAPR1MBNS spanner-width-sw-upper-body 25 max-height 63,5 outer-o-d 27 spanner-width-sw-lower-body 25 clamping-range-o-min-max 8,0 - 15,0 outer-thread-length-tl 16 size-td-iso-pitch-1.5 M20X1,5 armour-wire-max-o 1,3 over-conductors-max-o 9,5 Unità 1 pezzo Diametro di Serraggio 1 MIN-MAX 8,0 - 15,0 Materiale Ottone –
€0,00
PAPR1LNBNS spanner-width-sw-upper-body 30 max-height 65 outer-o-d 33 clamping-range-o-min-max 13,5 - 21,0 spanner-width-sw-lower-body 30 outer-thread-length-tl 21 size-td-iso-pitch-1.5 NPT 1/2” armour-wire-max-o 1,3 over-conductors-max-o 12 Unità 1 pezzo Materiale Ottone Diametro di Serraggio 1 MIN-MAX 13,5 - 21,0 –
€0,00
PAPR1LMXS outer-o-d 33 needed-barrier=compound-mixture-per-pcs 9 over-conductors-max-o 12 armour-wire-max-o 1,3 spanner-width-sw-lower-body 30 outer-thread-length-tl 16 max-height 65 spanner-width-sw-upper-body 30 clamping-range-o-min-max 13,5 - 21,0 size-td-iso-pitch-1.5 M20X1,5 Unità 1 pezzo Diametro di Serraggio 1 MIN-MAX 13,5 - 21,0 Materiale Inox –
€0,00
PAPO5NXS cable-glands-h-min 100 torque-of-cable-glands-sw3 75 cable-glands-tl-min 28 torque-of-cable-glands-sw2 125 cable-glands-sw1 70 clamping-range-d-min-max 27,0-41,0 size-td-npt-ansi-b1.20.b1 1 1/2” cable-glands-d2-min 83 cable-glands-sw2 70 clamping-range-d1-min-max 36,0-52,0 cable-glands-sw3 74 Unità 1 pezzo Materiale Inox Diametro di Serraggio 2 MIN-MAX 36,0-52,0 Diametro di Serraggio 1 MIN-MAX 27,0-41,0 Dimensione filettatura NPT 1 1/2” –
€0,00
PAPO5NBNS cable-glands-h-min 100 torque-of-cable-glands-sw3 75 cable-glands-tl-min 28 torque-of-cable-glands-sw2 125 cable-glands-sw1 70 clamping-range-d-min-max 27,0-41,0 size-td-npt-ansi-b1.20.b1 1 1/2” cable-glands-d2-min 83 cable-glands-sw2 70 clamping-range-d1-min-max 36,0-52,0 cable-glands-sw3 74 Unità 1 pezzo Materiale Ottone Diametro di Serraggio 2 MIN-MAX 36,0-52,0 Dimensione filettatura NPT 1 1/2” Diametro di Serraggio 1 MIN-MAX 27,0-41,0 –
€0,00
